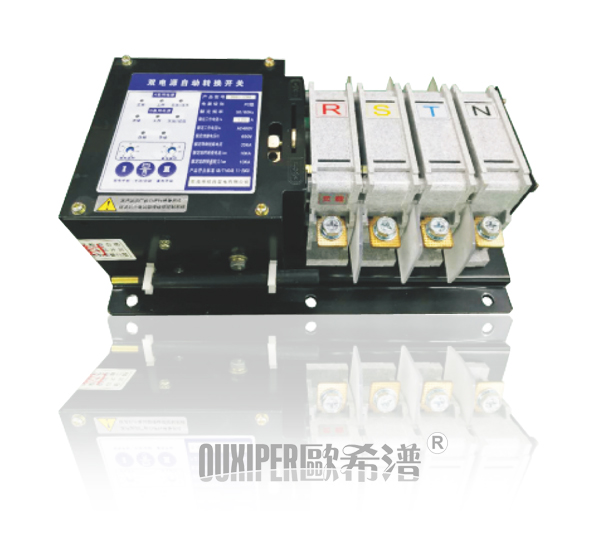

Ouxiper ATS

The Ouxiper ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment.

we provided these parts of various sizes.

Automatic transfer switch (ATS) is used in condition from AC660V 50HZ to DC250V. Under electromagnetism drive structure and two stage PC class type , our ATS can
meet fast load transfer (under 80 ms) of two ways power supply , it can be widely Used in high ways , building , post , coal , nines, ships health care , military facilities, and so on. 2 way power supply can be on grid , auto start genset , storage batteries, and so on.


The structure of major loop contact terminal consists of one dynamic and Two static contracts , the dynamic contact is in V type , in order to ensure there is no short circuit of the 2 ways power supply , N and T type use structure of double coils while M type use single coils operation , the coin only energized while it is transferred which can extremely extend the using life of the switch , the control power of coil is supplied from priority AC.DC power , so there is no use to add another control power , the switch has electrical and mechanical close indication and can offer 2 way NO/NC voltage free auxiliary contacts at the same time .

Ouxiper ATS has thee types : N, T and M type .

The rated current has 32A, 40A, 63A , 125A , 160A , 200A , 250A , 400A , 630A, 800A, 1000A and 1250A . We named them N type (From 32A to 125A ). T type:(160A To 400A) ,M type( above 630A) .
