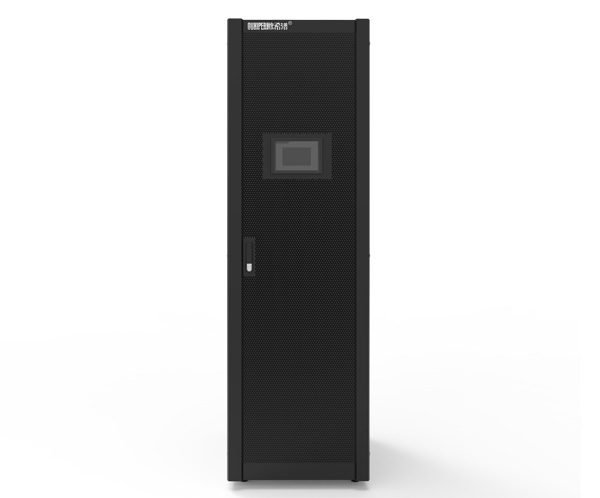

This UPS is developed as a high frequency on line modular UPS for medium and large data center, adopting fully digital control technology, fully guarantee power supply to operate reliably and stably; diversified option of modular power, accurately position user side requirements; flexible redundancy design greatly increase the system availability, user can realize expansion as demand, and modular structure greatly increase the convenience for maintenance.
Feature:
1, High reliability
Double conversion on line technology and Wide input voltage and frequency range make it adopt to the harsh environment of the grid and reduce The impact startup current on the generator .
2, Modular algorithm can reduce the area of the main circuit
Power and limits the temperature rising of the main circuit inside the UPS .
3, Energy saving
Adopting to high level topology design , efficiency is up to 96.3% , it can achieve to 99% under the mode Of ECO.
4, Parallel redundancy function
Support parallel expansion operation.
LBS Function supported.
Batteries can be shared by parallel units.
Parallel expansion up to 8 units of cabinet.
5, Battery charging
with the advance intelligent management of ABM mode , reduce the frequency of batteries maintenance ,
Greatly improve the battery efficiency and extends battery life .
The system can display the backup time of the battery calculated.
By discharge current and voltage.
Batteries are automatically tested at regular intervals .
6, N+X Parallel redundancy
N+X parallel redundant design, up to 8 units available ,makes the configuration more flexible .
It is easy to configure the parallel system just by connecting the cables and doing some proper settings.
7, Redundant control system
Each power module is equipped independent control .
System , and control itself independently according.
The sharing message , and the fault module separates.
From the system automatically.
8, Intelligent management
RS 232(USB) RS485 interface
SNMP card
Relay card
9, Clear LCD monitoring panel with on-screen instructions
10, Multi protection
Under/over voltage over load , short circuit ,over current , over bus voltage , over Temperature , fan failure ,battery fail and so on.
Specifications
Capacity
20KW-1.92MW
General characteristic
Overall efficiency( % )
Up to 6.5%
Number of parallel units
8 units
Transfer time(ms)
0
Input
Rated input voltage (vac)
Three phase four wire 380/220,400/230.415/240
Short current protection
Operating voltage(vac)
138 to 495
Rated Frequency
50Hz-60Hz
Operating Frequency
40Hz-70Hz
Power factor
≥99%
Current harmonic distortion (THDI)
≦ 3%
Bypass
Rated input voltage (vac)
Three phase four wire 380/220,400/230.415/240
Operating voltage(vac)
Lower limit: -40%,upper limit :+20%(configurable)
Bypass operating (HZ)
±20%
Output
Rated input voltage (vac)
Three phase four wire 380/220,400/230.415/240
Operating voltage(vac)
138 to 495
Rated Frequency
50Hz-60Hz
Power factor
0.9
Voltage tolerance
＜1%
Overload
load ≦ 110% , 3 hours , load ≦ 125%, 30 minutes.
Battery
Battery voltage(vdc)
±216 . ±228, ±240( 36/40/44 section)
Max charging power(KW)
60
Max charging current(A)
100
Environment
Operating Temperature
-0-40°C
Storage Temperature
-25 to 70°C
Ambient Humidity
0-95%
Audible noise
52 to 70 dB
Other functions
Alarm
overload , over temperature ,main road anti-imigation , bypass anti-imigation , Main power abnormal , UPS failure , battery low voltage
Protection
short circuit ,overload , main road anti-imgation , bypass anti-imigation , Output over voltage , fan failure , lighting protection
